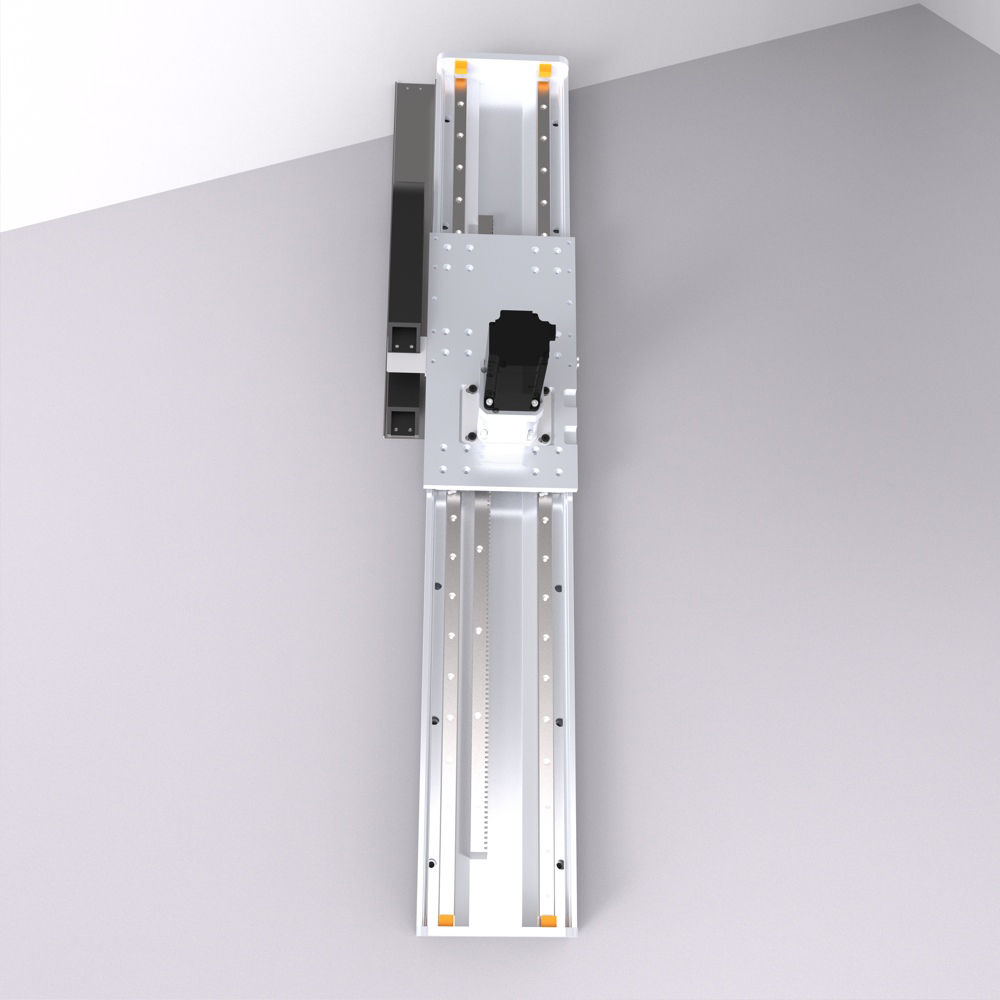

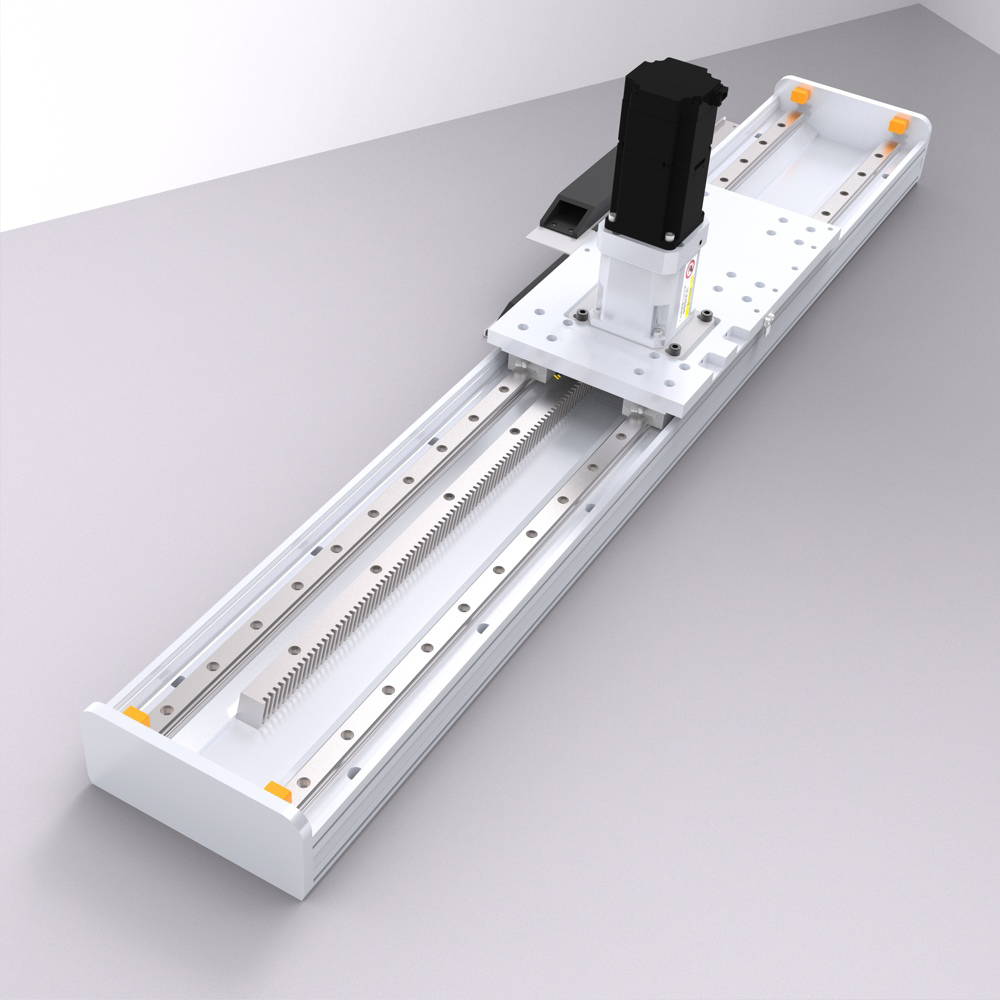

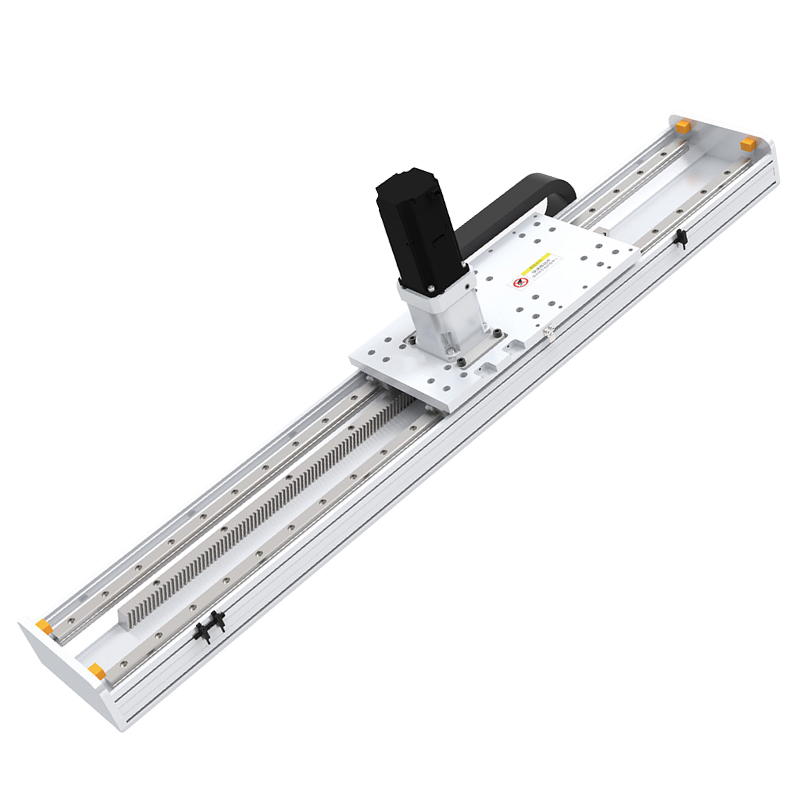

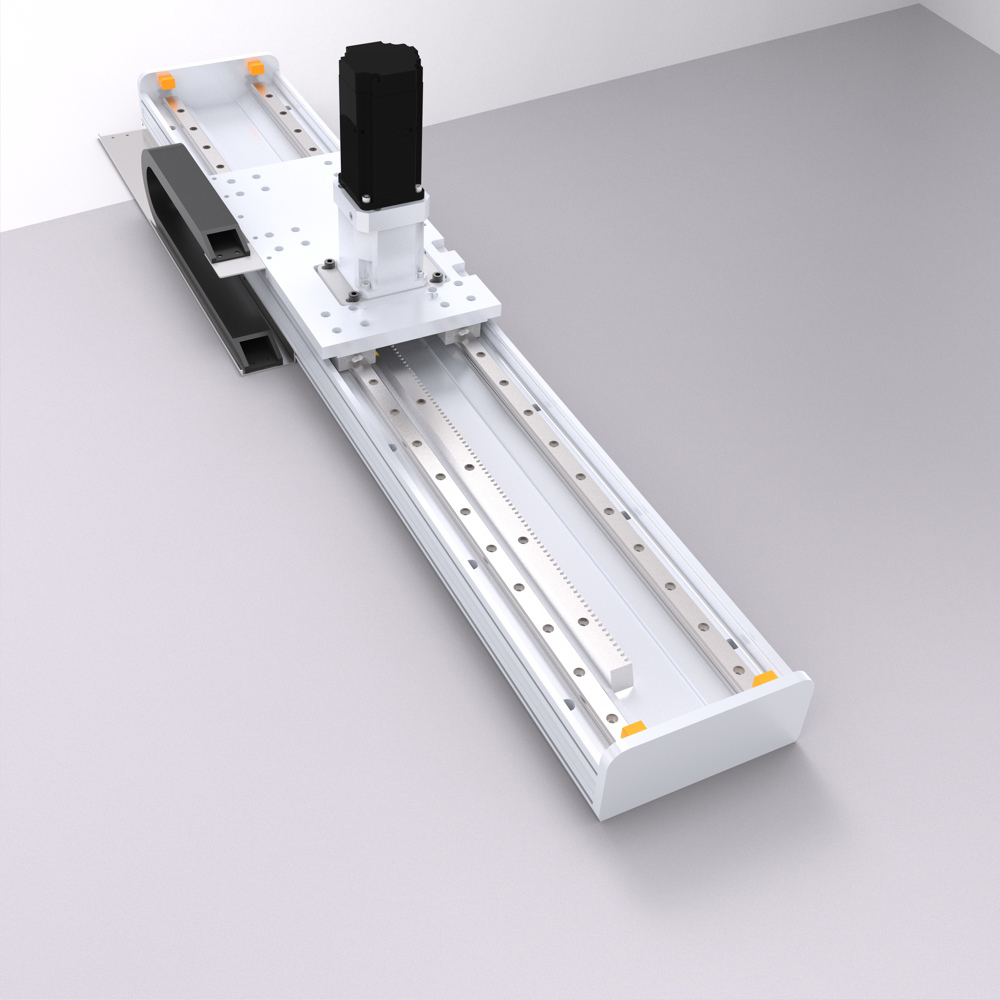

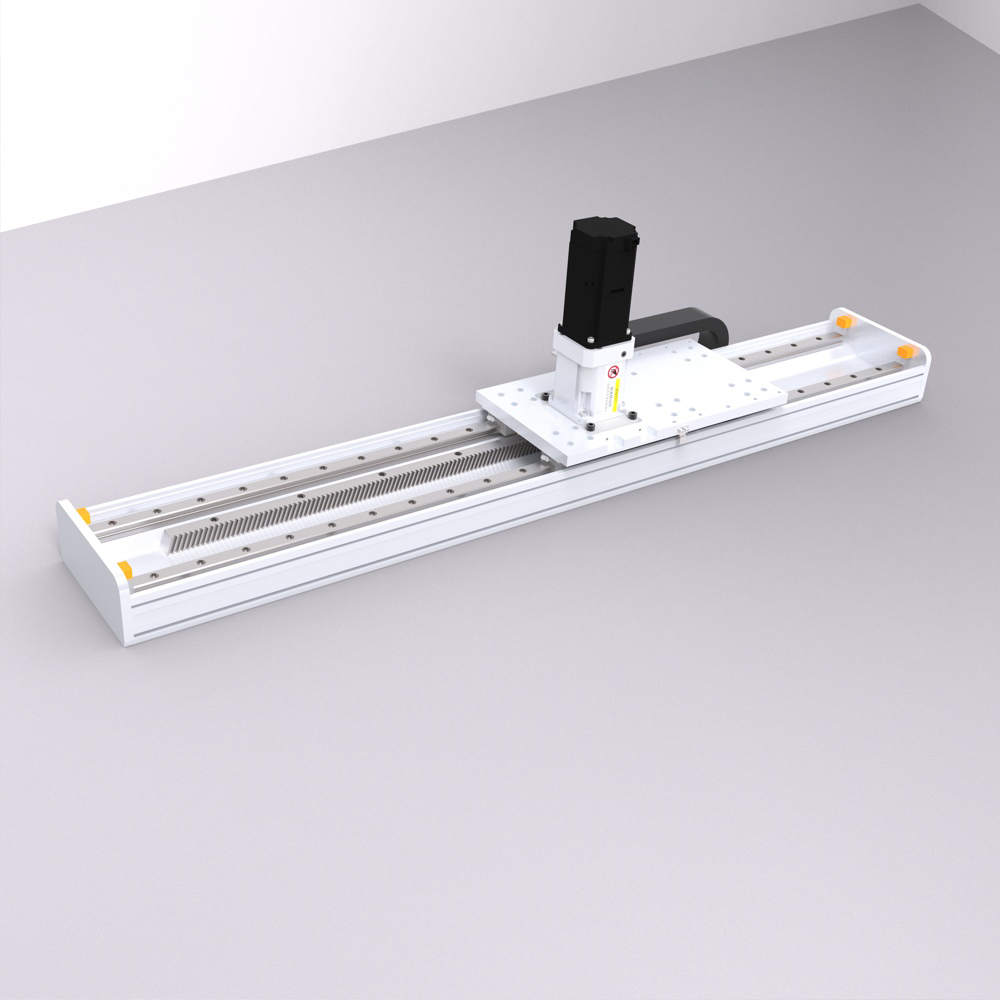

HYC220 · Gear Rack Slide Table Module
Largest model, perfect for industrial seventh-axis applications. With accordion cover for dust protection, the possibilities are endless.
| Position Repeating Accuracy：±0.02(mm) |
| Gear Module：2M |
| Lead：13/26/44(mm) |
| Standard Travel：900-5500/100(mm) |
| Maximum Horizontal Load：300kg |
| Maximum Vertical Load：80kg |
| Linear Rail Model：23×18-2pcs |
| Body Dimensions Reference：W=220mm,H=96mm |
| Drive Specifications：750W/3000r·min/2.39N·m |
|
|
|
