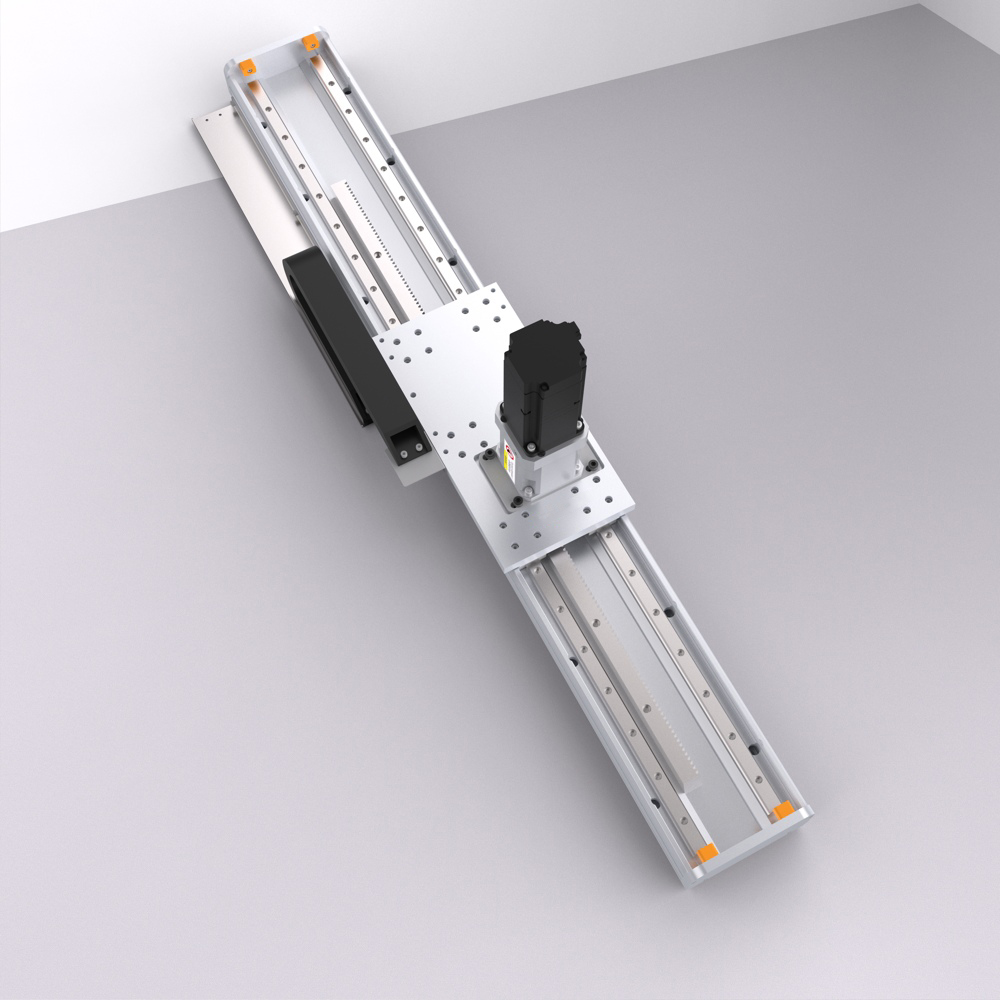

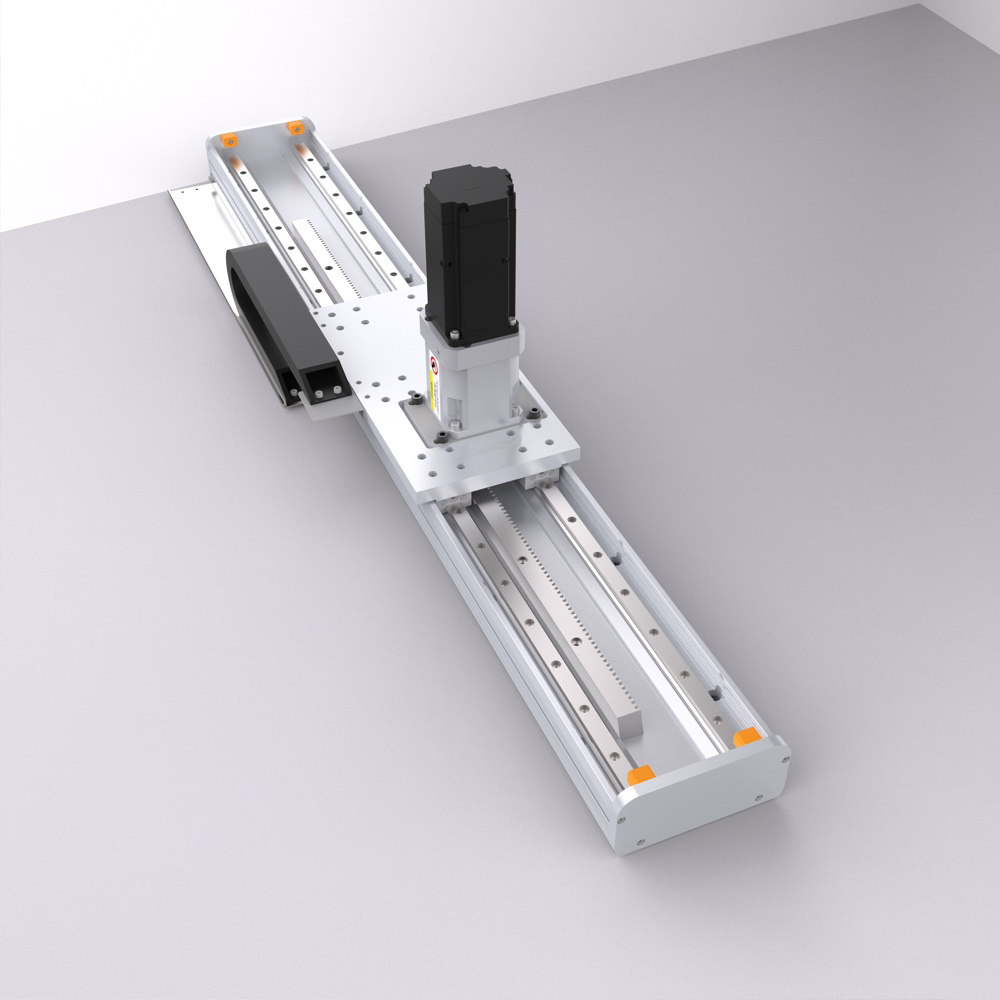

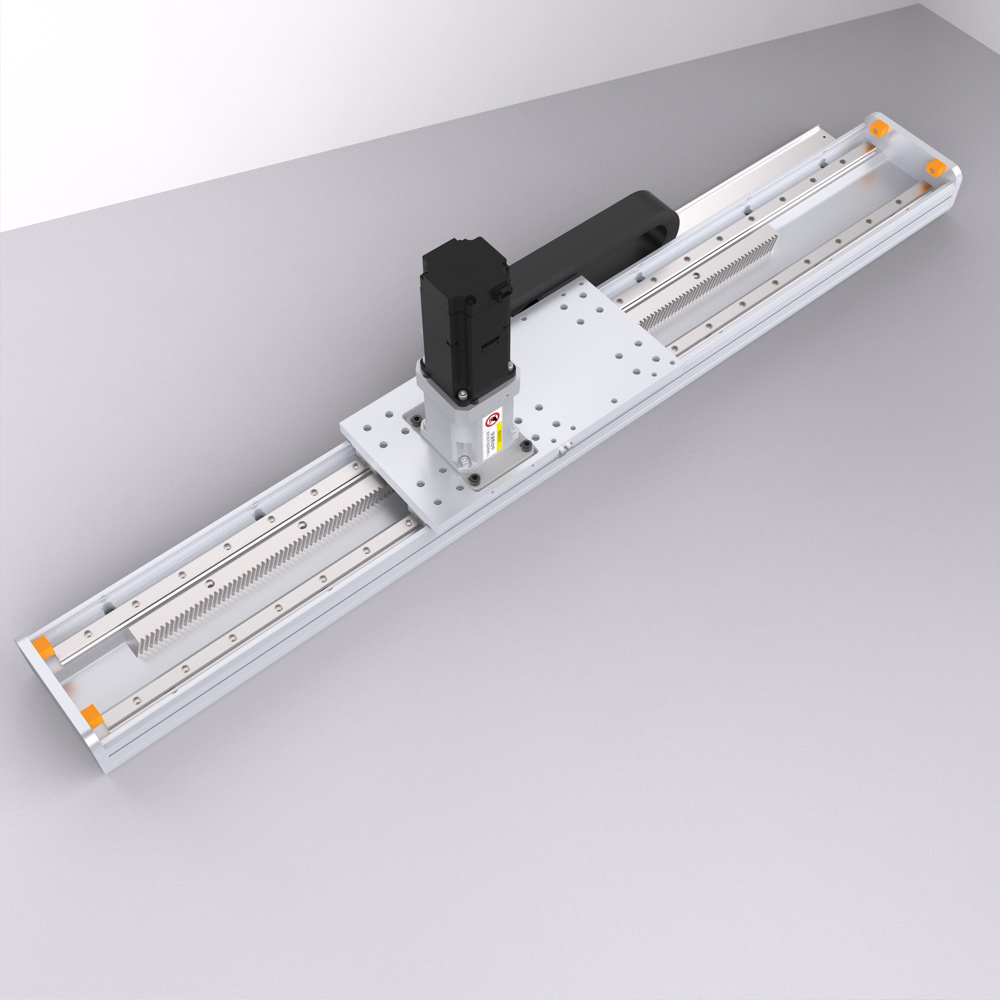

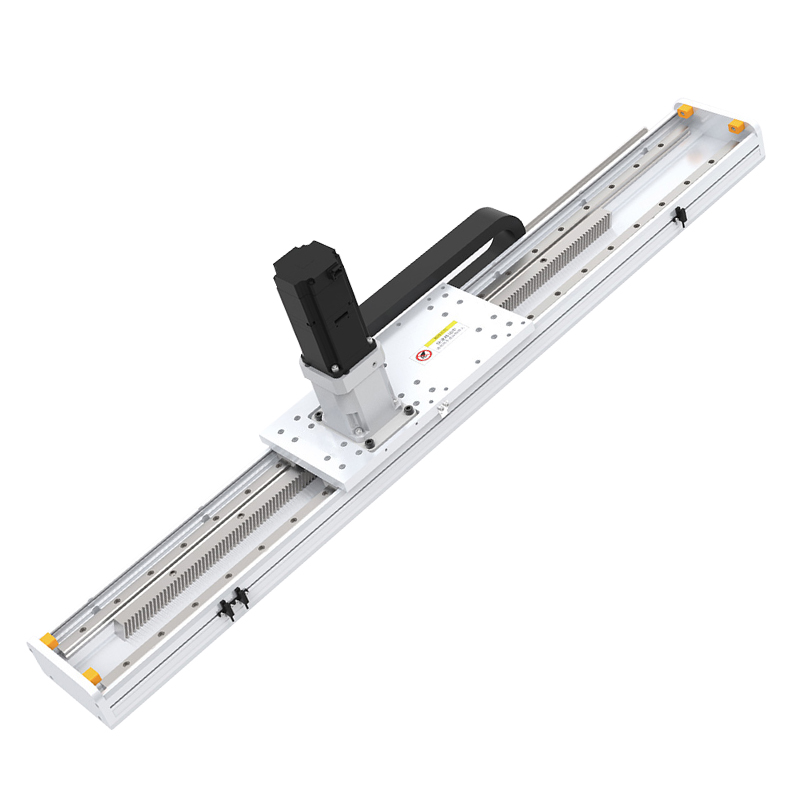

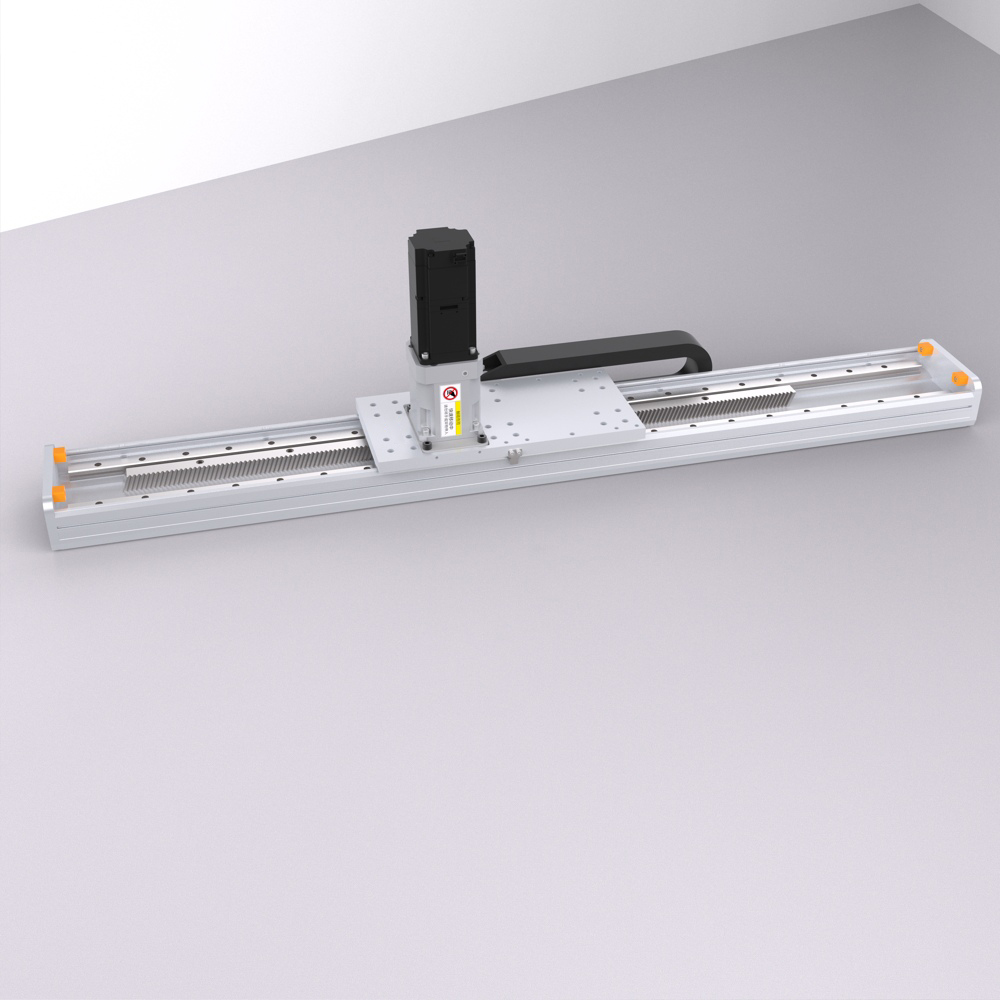

HYC170 · Gear Rack Slide Table Module
Large-sized gear rack slide table, supports customization of multiple style combinations

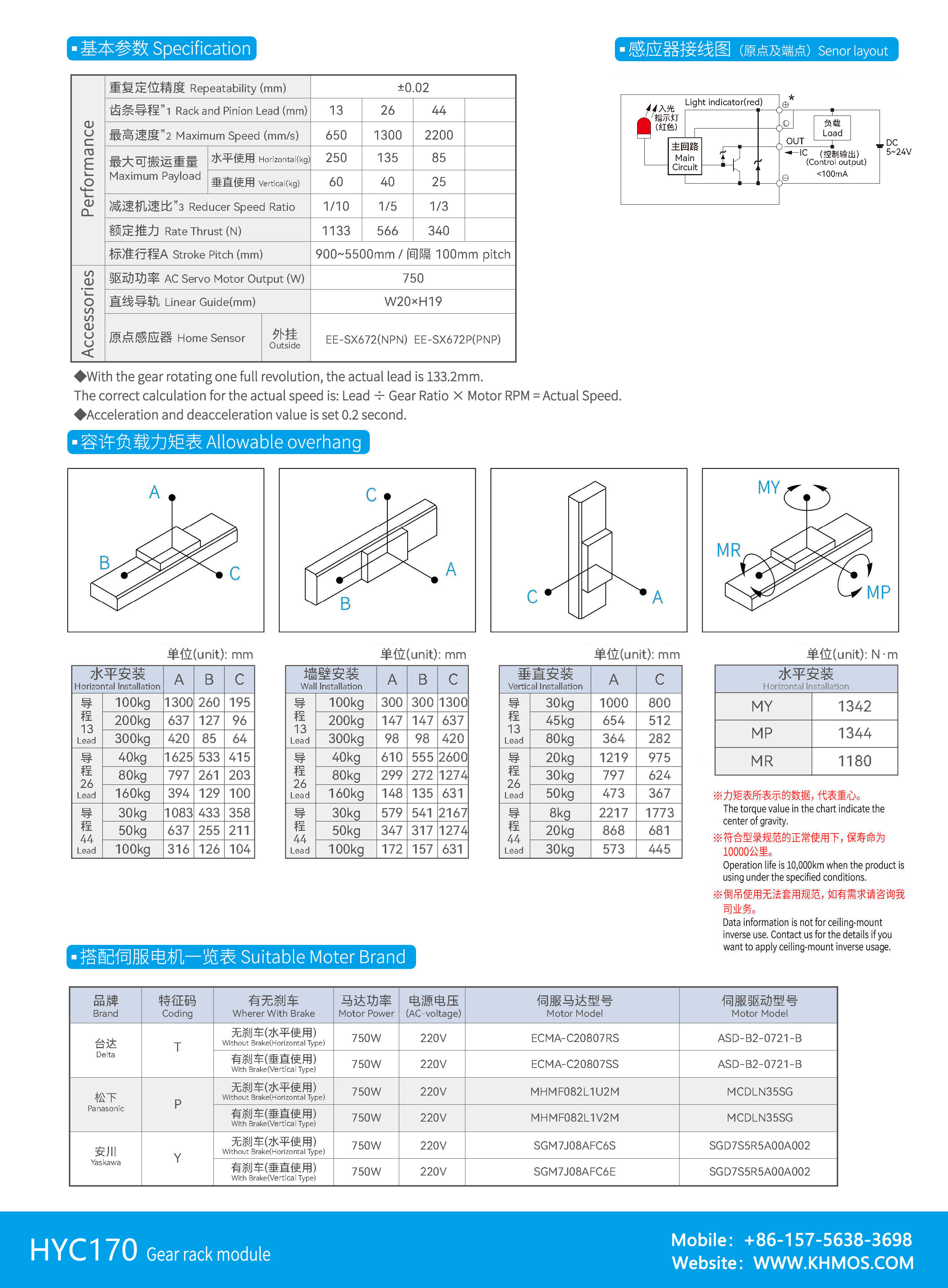

| Position Repeating Accuracy：±0.02(mm) |
| Gear Module：2M |
| Lead：13/26/44(mm) |
| Standard Travel：900-5500/100(mm) |
| Maximum Horizontal Load：250kg |
| Maximum Vertical Load：60kg |
| Linear Rail Model：20×19-2pcs |

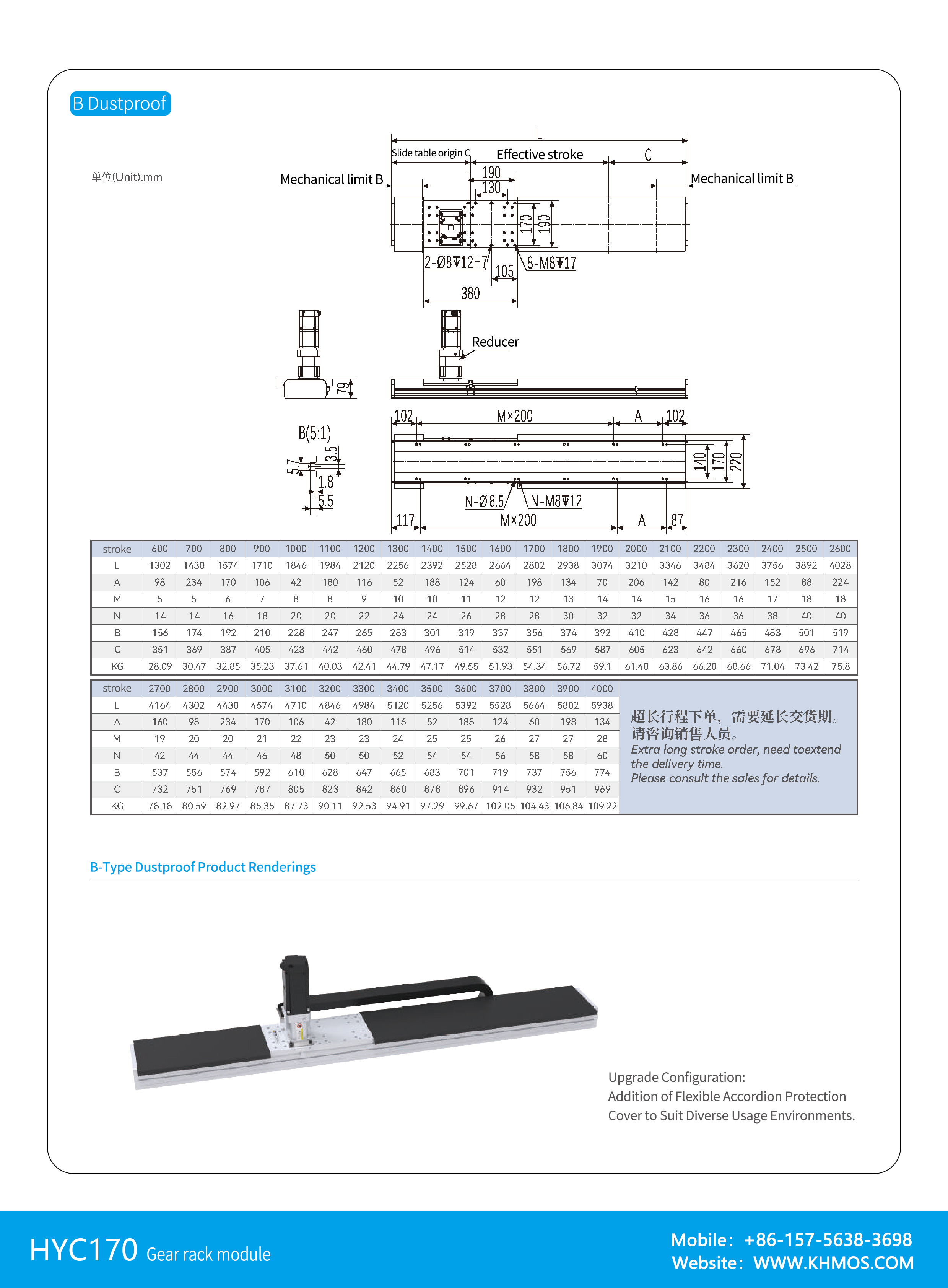

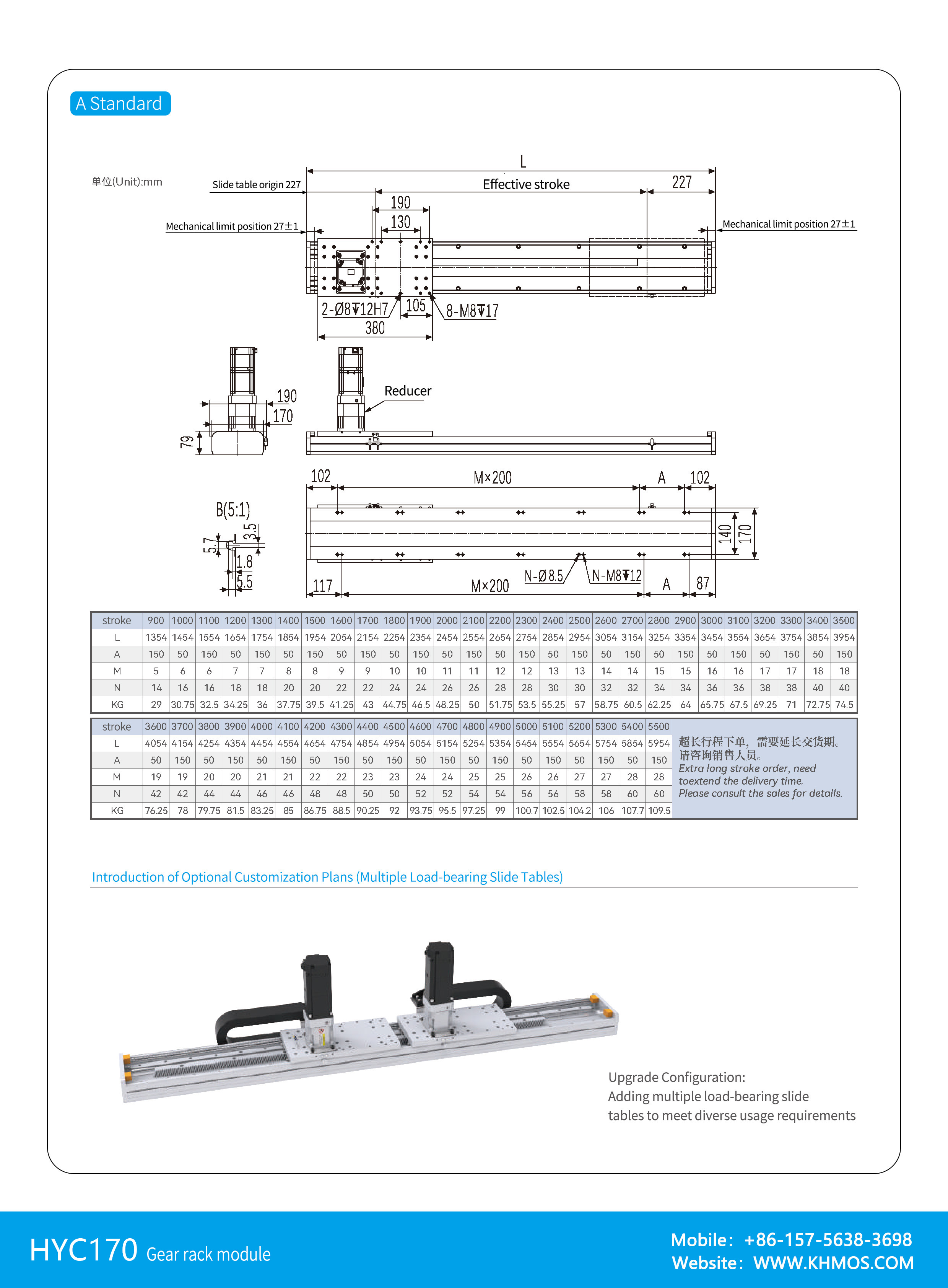

| Body Dimensions Reference：W=170mm,H=79mm |
| Drive Specifications：750W/3000r·min/2.39N·m |
|
|
|
